Model Features
- Rated up to 24,500 CFM in static pressure applications up to 6-1/2" w.g.
- 7 sizes ranging from 15” to 30” effective diameter wheels
- Continuously welded and epoxy coated steel housing
- For indoor/outdoor use
- AMCA Air and Sound Licensed
- cULus 705 Listed
- cULus 793 Listed for 500℉ (260℃) for 6 hours and 572℉ (300℃) for 2 hours
Model Overview
SMXDK-HT series is a direct drive mixed flow fan specially designed to maximize the airflow performance by acting as a hybrid between an axial and centrifugal fan. This HT (high temperature) model can provide emergency heat and smoke ventilation in the event of a fire, which can provide valuable time to people exiting or emergency personnel. The SMXDK-HT is UL Certified to exhaust heat and smoke in emergencies [500℉ (260℃) for 6 hours and 572℉ (300℃) for 2 hours].
SMXDK-HT features a direct drive motor paired with AC drives to allow the flexibility to control the speed of airflow. This feature has no transmission losses associated with belt drives and features less maintenance.
Designed with high efficiency and low sound as a priority, SMXDK-HT can be used in parking garages, commercial buildings, warehouses, food retail centers, and educational buildings.
2-year fan housing warranty
Size | CFM Range | Max SP |
15 | 1000 - 4185 | 1-3/4" |
16 | 1500 - 5980 | 2-1/2" |
18 | 1600 - 8390 | 3-1/4" |
20 | 2200 - 12490 | 4-1/4" |
22 | 2400 - 17100 | 5" |
24 | 4500 - 24500 | 6-1/2" |
30 | 5000 - 23480 | 3-1/2" |
SMXDK-HT

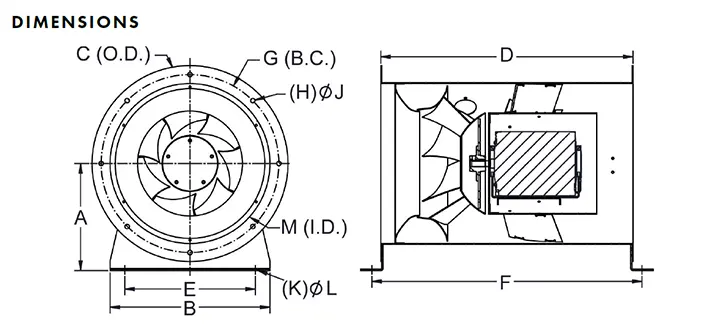

Dimensional data is displayed in inches.
Model | A | B | C | D | E | F | G | H | J | K | L | M |
15 | 12-3/8 | 19-11/16 | 22-13/16 | 27-15/16 | 16-5/16 | 29-7/16 | 21-1/4 | 12 | 3/8 | 4 | 9/16 | 19-11/16 |
16 | 13-13/16 | 22-1/16 | 26 | 31-1/2 | 18-1/8 | 33 | 23-13/16 | 12 | 3/8 | 4 | 9/16 | 22-1/16 |
18 | 15- 3/16 | 22-13/16 | 28-3/4 | 35-7/16 | 20-7/8 | 36-15/16 | 26-9/16 | 12 | 3/8 | 4 | 9/16 | 24-13/16 |
20 | 17 | 28-3/16 | 31-7/8 | 39-3/8 | 24-1/4 | 40-13/16 | 29-3/4 | 18 | 1/2 | 4 | 5/8 | 27-15/16 |
22 | 18-3/4 | 31-1/2 | 35-7/16 | 39-3/8 | 24-1/4 | 40-13/16 | 33-1/4 | 18 | 1/2 | 4 | 5/8 | 31-1/2 |
24 | 20-11/16 | 35-7/16 | 39-3/8 | 43-5/16 | 31-1/2 | 44-3/4 | 37-3/16 | 18 | 1/2 | 4 | 5/8 | 35-7/16 |
30 | 22-3/4 | 39-3/8 | 43-5/16 | 49-3/16 | 35-7/16 | 40-13/16 | 41-5/16 | 24 | 1/2 | 4 | 5/8 | 39-3/8 |
