LCE and LCS Belt Drive Sidewall Propeller Exhaust/Supply Fans

Sidewall Propeller Fan Series

LC Models

Model Features

  • Exhaust air up to 40,000 CFM in high static pressure applications up to 1/2" w.g.
  • Heavy-gauge galvanized steel panel
  • Die formed galvanized steel blades
  • Drives are sized for a minimum 150% of drive horsepower
  • AMCA Air and Sound Licensed
  • UL Listed
  • cULus 705 Listed

AMCA Air and Sound Licensed   cULus Listed

Model Overview

LCE (exhaust) and LCS (supply) are high capacity belt driven propeller fans rated from 3,000 to 40,000 CFM, with static pressure capability up to 5/8" w.g. Their primary application is the exhaust or supply of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry houses, and greenhouses.

Wall mounting provides an easy, economical installation. Belt driven fans provide large volumes of air at low fan speeds and low noise levels and afford quick, easy performance adjustments. All necessary accessories are available to meet any need or specification.

LC's can be suspended from the ceiling to direct large volumes of air downward toward work centers, improving employee comfort and productivity.

When mounted in portable housings with OSHA guards, LC-P's can be used as a man-cooler and rolled to hot spots to provide needed employee relief from heat or fumes to help increase productivity.

2-year fan housing warranty, 1-year motor warranty

Size CFM Range Max SP
20 2783 to 5630 1/2"
24 2256 to 9774 5/8"
30 4215 to 13339 1/2"
36 5537 to 19165 1/2"
42 5438 to 23755 3/8"
48 6659 to 28209 3/8"
54 10232 to 36809 1/2"
60 16672 to 40855 3/8"

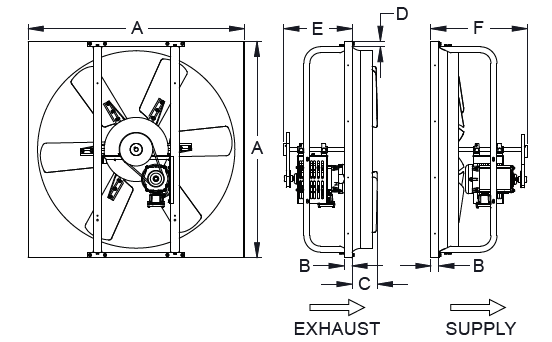

Dimensional Drawing LC
Size A B C D E F Damper O.D. Sq. Flange
20 24" 2" 5" 1-1/4" 15" 23" 22-1/2"
24 30" 2" 7-1/2" 1-1/4" 15" 23" 28-1/2"
30 36" 2" 7-1/2" 1-1/4" 15" 24" 34-1/2"
36 42" 2" 7-1/2" 1-1/4" 15" 24" 40-1/2"
42 48" 2" 7-1/2" 1-1/4" 16" 24" 46-1/2"
48 54" 2" 7-1/2" 1-1/4" 16" 24" 52-1/2"
54 60" 2" 7-1/2" 1-1/4" 20" 26" 58-1/2"
60 66" 2" 7-1/2" 1-1/4" 20" 26" 64-1/2"

Mounting Option Description
Wall Housing Heavy-gauge, all galvanized G-90 steel housing provides a simple solution to installing a fan and all required accessories in a rough wall opening. It can be used in exhaust or supply applications and fan sizes 20 to 72 inches.
Filtered Wall Housing For installations where filtering is required. Heavy-gauge, all galvanized G-90 steel filtered wall housings are available in both supply and exhaust configurations. They are available in eight (8) sizes for fans ranging from size 20 to 60 inches. They are designed with the draw-thru concept to achieve the highest filter and fan efficiencies.
Wall Collar Heavy-gauge, all G-90 galvanized mounting collar provides a simple solution to installing a fan in a rough wall opening when a rear safety guard is NOT required.

Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

Description
Rainhoods/Weatherhoods   Download
Gravity Dampers for Exhaust and Supply   Download
Motorized Dampers for Exhaust and Supply   Download
Center Pivot Motorized   Download
Dampers for Exhaust and Supply   Download
Disconnect Switches   Download
Aluminum Construction   Download
Extended Lube Lines   Download
Mounting Angles   Download
Factory Wiring   Download

Description
LCE and LCS Catalog Pages   Download
LCE and LCS Product Submittal   Download
LCE and LCS Product IOM   Download

Description
LCE (Exhaust) Revit File
LCS (Supply) Revit File
Exhaust Rainhood (45 degree) Revit File
Supply Rainhood (90 degree) Revit File

  • General/Clean Air
  • Spark Resistant
