ACF Agricultural Circulating Fan

Sidewall Propeller Fan Series

WA Model

Model Features

  • Galvanized steel construction for long lasting corrosion resistance
  • Permanently sealed ball bearings
  • IP55 motor rating
  • Mounting holes on frame
  • Tested per per ANSI / AMCA Standard 210-16, in an AMCA certified test facility
  • This product meets the requirements of Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022). Download letter here.

  BABA-ACT

Model Overview

Constructed with galvanized steel for long-lasting corrosion resistance, ACF48 is a high-quality fan at an exceptional price. Featuring an IP55 motor rating and permanently sealed ball bearings, this fan is constructed for agricultural, commercial and industrial jobs. Installation is easy through mounting holes directly on the frame. Optional accessories include a wall box kit.

1-year fan housing and motor warranty

Blade Diameter CFM RPM
48" 20,300 850

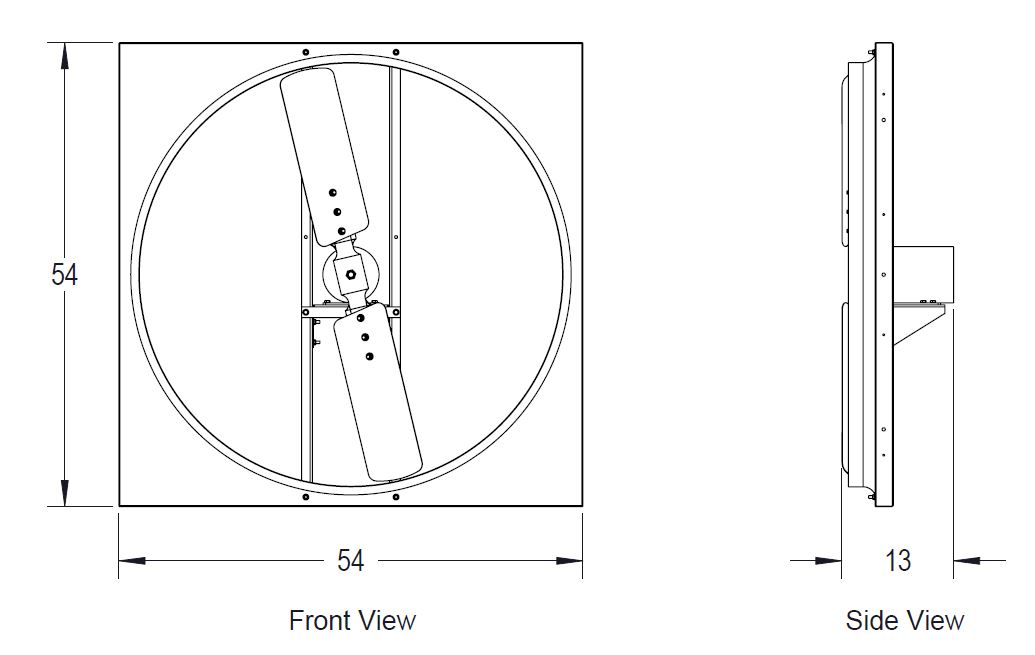

Dimensional Drawing for the ACF Model

Dimensional data is displayed in inches.

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Optional Accessory

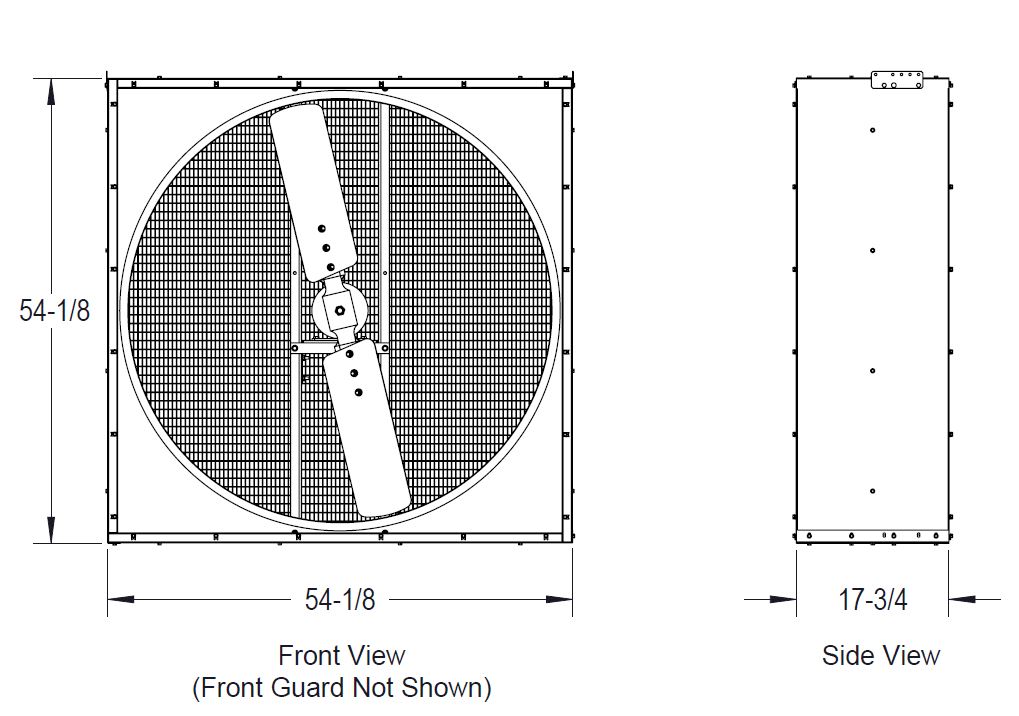

Wall Box Kit
  • Screens are 1/2” x 1”
  • Wall Box is G-90 galvanized steel
  • Hanging brackets included
  • Dimensions 54-1/8" x 54-1/8" x 17-3/4"
Dimensional Drawing for the ACF Model

Dimensional data is displayed in inches.

Product Line Overview PreviewDownload
Flyer PreviewDownload
Submittal PreviewDownload
IOM PreviewDownload

  • Poultry
  • Dairy
  • Greenhouse
  • Commercial
  • Industrial
