UBSRD and UBSRD-P Remote Drive Upblast Propeller Roof Exhaust Fan

Roof Propeller Fan Series

UBSRD Model

UBSRD


UBSRD Model

UBSRD-P

Model Features

  • Exhaust air up to 67,000 CFM in static pressure applications up to 1" w.g.
  • Motor and drives are located outside of the exhaust airstream
  • UBSRD is suited for removal of heated or contaminated air
  • Capable of continuous operation exhausting air up to 200°F
  • Belt drives permit easy performance adjustments when needed
  • cULus 705 Listed
  • This product meets the requirements of Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022). Download letter here.

cULus   BABA-ACT

Model Overview

Model UBSRD units are high capacity, belt driven roof mounted exhausters rated from 3,700 to 67,000 CFM. The motor and drives are located outside of the exhaust airstream, making these units especially suited for the removal of heated or contaminated air from commercial and industrial buildings or processes where these conditions exist. All models are capable of continuous operation exhausting air to 200°F.

The remote drive construction allows for easy rooftop belt and motor access for maintenance. For increased air performance (in clean conditions) with the same easy maintenance access, the UBSRD is available without the belt and bearing enclosures. Straight-through air flow design results in maximum exhaust efficiency. During operation, high air flow velocity opens butterfly dampers and prevents rain or snow from entering. Dampers close and cover the venturi opening when unit is not in use.

The roof mounted location eliminates interference with processes and equipment inside the building. It also permits locating the exhauster over a source of heated or contaminated air, allowing direct upward venting to the outside, unlike an wall mounted exhauster which may move contaminated air through adjacent work spaces.

The UBSRD-P is an excellent choice for applications that require access to the internal components of the fan from the roof, and do not need UL793 high temperature components. The UBSRD-P also has a highly efficient polypropylene propeller that can withstand most applications.

2-year fan housing warranty, 1-year motor warranty

UBSRD

Size CFM Range Max SP
24L 4,977 to 8,800 5/8"
30L 7,404 to 14,235 1/2"
30H 11,156 to 17,664 3/4"
36L 6,217 to 19,128 1/2"
36H 12,076 to 22,599 3/4"
42L 11,847 to 25,056 1/2"
42H 18,996 to 30,440 3/4"
48L 15,444 to 31,937 5/8"
48H 24,225 to 40,214 3/4"
54L 16,227 to 36,726 1/2"
54H 22,967 to 45,565 3/4"
60L 18,214 to 50,459 5/8"
60H 27,799 to 25,173 3/4"

UBSRD-P

Size CFM Range Max SP
24 3,739 to 10,137 3/4"
30 5,160 to 16,049 1"
36 6,846 to 23,564 1"
42 10,526 to 35,033 1"
48 8,468 to 47,896 1"
54 15,138 to 52,973 1"
60 15,799 to 67,191 .875"

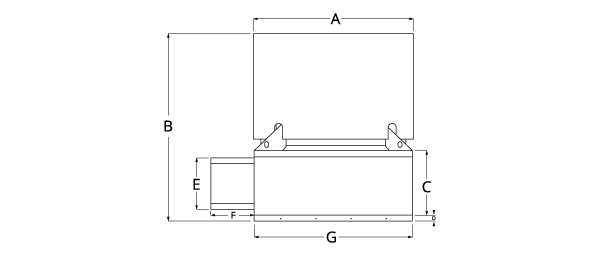

Dimensional Drawing for the UBSRD Model

Dimensional data is displayed in inches.

Size A B C D E F G H I
24 30 49 22 2 17-1/2 15 29-1/2 28-1/2 25-1/2
30 36 52 22 2 17-1/2 15 35-1/2 34-1/2 31-1/2
36 42 58 22 2 17-1/2 15 41-1/2 40-1/2 37-1/2
42 48 61 22 2 17-1/2 15 47-1/2 46-1/2 43-1/2
48 54 64 22 2 17-1/2 15 53-1/2 52-1/2 49-1/2
54 60 67 22 2 17-1/2 15 59-1/2 58-1/2 55-1/2
60 66 70 22 2 17-1/2 15 65-1/2 64-1/2 61-1/2

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

Roof Curb
Outlet Guard
Disconnect Switches
Magnetic Latches
Non-insulated Belt Cover
Propeller Side Safety Guard
Extended Grease Lines

Product Line Overview PreviewDownload
UBSRD-P Flyer PreviewDownload
General Catalog Section PreviewDownload
Typical Specification Sheet PreviewDownload
Submittal PreviewDownload
IOM PreviewDownload

  • General/Clean Air
  • Contaminated Air
  • High Temp above 200°F
