TJFUAxial Jet Fan

Jet Fan Series

TJFU Jet Fan Model

Model Features

  • Thrust air between 8 and 89N
  • Air flow up to 6474 CFM
  • cULus 705 Listed
  • Available in 60 Hz; 230V, 460V and 575v
  • For daily ventilation
  • Industry Best 5 year housing warranty, 1 year motor

cULus

Model Overview

The TJFU axial jet fans were designed with relative compactness and efficiency in mind. They are perfect for moving a great deal of air to keep a parking garage safe. The fans induce air flow to move dangerous gasses out of enclosed garages and to dedicated ventilation points. Jet fans eliminate the need for ductwork throughout parking areas which reduces installation costs.

5-year fan housing warranty, 1-year motor warranty

Performance

Model Thrust
(N)
Flow
(CFM)
Sound Level
(LwA)
Sound Pressure*
(LpA) 5ft
TJFU-315 33 / 8 3119 / 1560 84/66 73/53
TJFU-355 57 / 14 4591 / 2295 87/71 75/58
TJFU-400 89 / 22 6474 / 3237 91/74 80/61

Sound Data

2 Pole
TJFU 125 250 1K 2K 4K 8K LwA
315 66 68 78 79 71 66 84
355 69 72 82 81 74 68 87
400 74 73 86 87 80 75 91
4 Pole
TJFU 125 250 1K 2K 4K 8K LwA
315 54 58 61 54 50 43 66
355 58 62 67 58 54 47 71
400 62 65 67 64 60 52 74

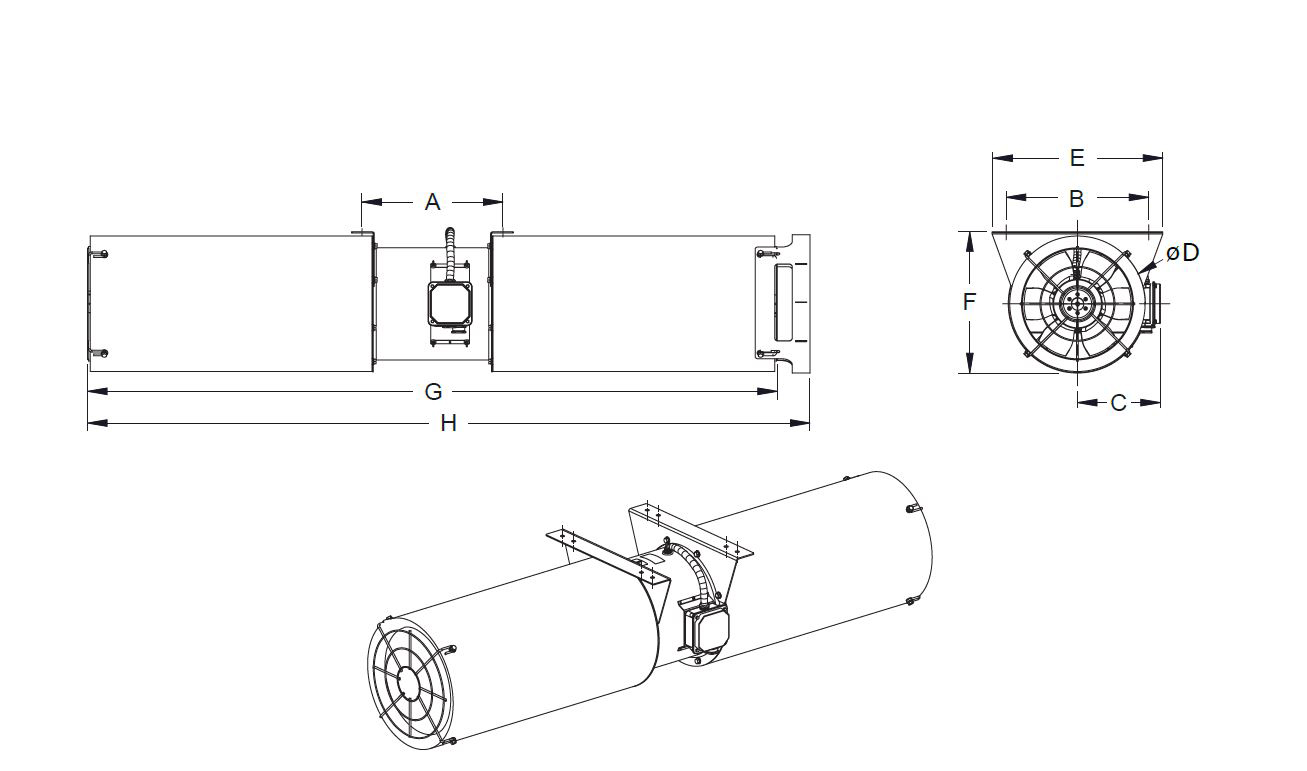

Dimensional drawing for TJFU models.

Dimensional data is displayed in inches.

Model A B C D E F G H WT(LB)
TJFU-315 12-3/16 15-15/16 9-5/16 15-3/16 19-1/8 15-5/8 69 71-1/4 123
TJFU-355 12-3/16 17-1/2 10-3/16 16-3/4 20-11/16 17-3/16 69 71-1/4 165
TJFU-400 12-3/16 19-15/16 11-1/8 19-1/8 23-1/16 19-5/8 69 71-1/4 194

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

Ecowatt® Drive Submittal Flyer
Ventilation Gas Detectors Submittal IOM

Product Line Overview PreviewDownload
Flyer PreviewDownload
Brochure Preview Download
Submittal PreviewDownload
IOM PreviewDownload

TJFU (Axial Jet Fan) Download

  • Indoor Garages
  • Indoor Parking Spaces
  • Warehouses

+
