PCD DC Motor Models

Premium CHOICE Series

PCD Model

Model Features

  • Extremely quiet operation 0.3 to 1.2 Sones
  • Brushless DC motor for long life
  • Motor rated for 60,000 hours continuous on High/Low-speed delay timer
  • 6" Duct connector with built-in backdraft damper
  • Robust steel housing
  • Attractive, sturdy grille
  • cETLus Listed
  • ENERGY STAR® qualified
  • HVI Certified
  • EcoWatt®

cETLus Listed   ENERGY STAR Qualified   HVI Certified   Title 24   EcoWatt Registered

Model Overview

PCD fans feature the most efficient DC motors available to help improve indoor air quality and increase your home's durability by quickly exhausting contaminants and excess moisture that can cause health issues, mold growth, and structural damage. With built-in control boards, the PCD models allow you to CHOOSE your airflow. The DC fans are available with humidity sensing, motion sensing, and VOC sensing options built-in.

6-year motor warranty

PCD Toggle Switch Settings

The built-in Toggle Switches and duct connector options allow you to set the PCD fan to the required airflow.

Switch Toggle Switch 90 Switch 110 Switch 120 Switch 140
Airflow (CFM) 90 110 120 140

1 and 2: Airflow | 3: Duct Size | Factory Setting: 110 CFM

Technical Specifications

All Variations Duct Dia. Speed Setting HVI Certified CFM 0.1" SP HVI Certified CFM 0.25" SP Sones @ 0.1" SP Voltage Frequency Energy Efficiency (CFM/Watts) Watts @ 0.1" SP Current Avg. Ship Weight ENERGY STAR® Qualified
PCD100X 6" 40 CFM 40 - <0.3 120V 60Hz 9.5 4.2 - 11 lbs Yes
6" 90 CFM 90 51 0.5 11.1 8.1 0.16A
6" 110 CFM 110 78 0.9 10.7 10.3 0.18A
6" 120 CFM 120 91 1.2 9.8 12.2 0.22A
6" 140 CFM 140 113 1.5 9.0 15.6 0.23A

HS = High Speed | LS = Low Speed

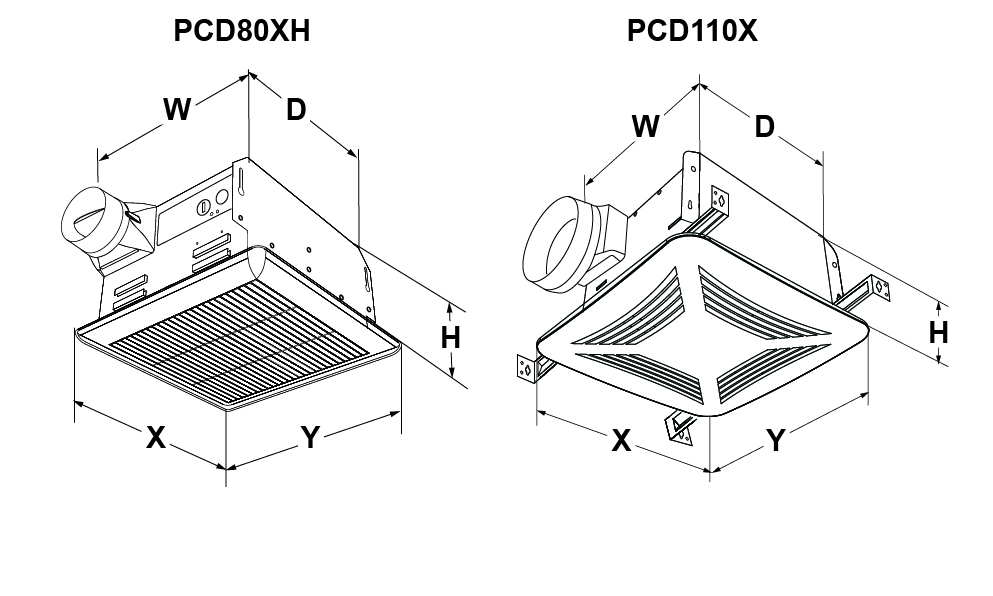

Dimensional Drawing PCD
All Variations X Y W D H
PCD110X 13" 14" 11-3/8" 10-1/2" 7-5/8"

Plug-&-Play Grille Options

Metal Grille

PCMG - Metal Grille

  • 13 x 14" metal grille
  • Ideal for commercial applications

Lighted Grille Kit

PCLK - CFL Lighted Grille Kit

  • 13 watt GU24 bulb (2700K/900 lumens)
  • 4 watt night light bulb
  • Simple plug-in receptacle in fan housing
  • Can be installed with new or pre-installed fan

PCLEDK - LED Lighted Grille Kit

  • 11 watt LED array (4100K/1100 lumens)
  • 2 watt LED night light setting (200 lumens)
  • Simple plug-in receptacle in fan housing
  • Can be installed with new or pre-installed fan

Sensing Grille Kit

PCDLMG - Motion Sensing Lighted Grille Kit

  • Compatible with PCD110XM and PCD110XMH
  • 13 Watt GU24 Bulb (2700K/900 Lumens)
  • 4 Watt Night Light Bulb
  • Automatically turns on fan when motion is sensed
  • Adjustable Time Delay Shut-Off from 3 to 30 Minutes
  • Simple Plug-In Receptacle in Fan Housing
  • Can be installed with New or Pre-Installed Fan

Plug-&-Play Dampers and Kits

PCRD – Radiation Damper

  • 3-Hour Rating Ceiling Radiation Dampers
  • UL Listed Link (165°F Standard)
  • UL Approved Flexible Fire Blanket
  • Ceramic Fiber with Fiberglass Cover
  • Roll-Formed Frame 22 g. Galvanized Steel

Radiation Damper Grille Kits (PCDLMGRD, PCLKRD, PCLEDKRD)

  • Include PCRD plus:
    • Grille Kit (as indicated)
    • Wiring Extender

PCD110MRD - Radiation Damper Grille Kits

  • Include PCDRD plus:
    • Wiring Extender

Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Radiation Dampers & Kits

Part Description
PCRD Ceiling Radiation Damper   Download
PCD110MRD Ceiling Radiation Damper Kit for PCD110XM and PCD110XMH   Download
PCLKRD Ceiling Radiation Damper with PCLK Grille Kit   Download
PCLEDKRD Ceiling Radiation Damper with PCLEDK Grille Kit   Download
PCDLMGRD Ceiling Radiation Damper with PCDLMG Grille Kit   Download
PCMGKRD Ceiling Radiation Damper with PCMG Grille   Download

Electrical Controls

Part Description
PC3S 3-Switch Control   Download
FT622 ASHRAE 62.2 Bath Fan Ventilation Control   Download
FT247 Programmable Fan Timer   Download

General Accessories

Part Description
PER-W Plastic Louvered Shutter   Download
GRA Aluminum Exterior Fixed Grille   Download
RC Roof Cap   Download
ME Round Adjustable Metal Elbow   Download
DC Duct Connector   Download
WC Worm Clamp   Download

Replacement Parts

Part Description
PCDC4 Replacement 4" Duct Connector   Download
PCDC6 Replacement 6" Duct Connector   Download
